What Should You Measure Before Ordering In-Pool Lounge Chairs? A 7-Point Checklist

Quick Answer
Before ordering an in-pool lounge chair, measure the actual water depth, usable shelf depth, minimum usable width, surface slope, fixed obstacles, furniture spacing, and entry clearance. Always measure the usable area of the shelf—not just the dimensions shown on the pool plan—because steps, curves, jets, and drop-offs can reduce the space available for furniture.

Introduction
An in-pool lounge chair may look like a good fit in product photos but feel crowded or unstable once placed on your sun shelf. Learning how to measure for in-pool lounge chairs before ordering helps you choose a chair that matches your actual water depth, available footprint, and pool layout. This seven-point checklist explains exactly what to measure, how to record it, and how to use those measurements when comparing loungers.

The 7 Measurements to Take Before You Order

The following seven measurements can help you determine whether an in-pool lounger will fit your sun shelf:

  1. Actual water depth
  2. Usable shelf depth
  3. Usable shelf width
  4. Surface slope
  5. Steps, jets, drains, and other obstacles
  6. Space between chairs and tables
  7. Entry and walking clearance

Use this checklist to record the dimensions that will influence your chair selection and final layout.

What to measure How to measure it Why it matters
Actual water depth Measure from the shelf surface to the normal waterline Determines chair and weighting compatibility
Usable shelf depth Measure the clear area from back to front Determines whether the chair footprint fits
Usable shelf width Measure the narrowest clear side-to-side area Determines how many chairs or tables will fit
Surface slope Compare the water depth at several points Reveals whether the chair will sit on a flat surface
Fixed obstacles Mark steps, jets, drains, lights, and sleeves Prevents blocked features and uneven placement
Furniture spacing Compare all chair and table footprints Leaves room to sit down, stand up, and move
Entry clearance Measure the open path into the pool Keeps furniture from obstructing normal access

Measure the shelf when the pool is filled to its normal operating level. If your water level changes during the season, record both the typical depth and the deepest level you expect.

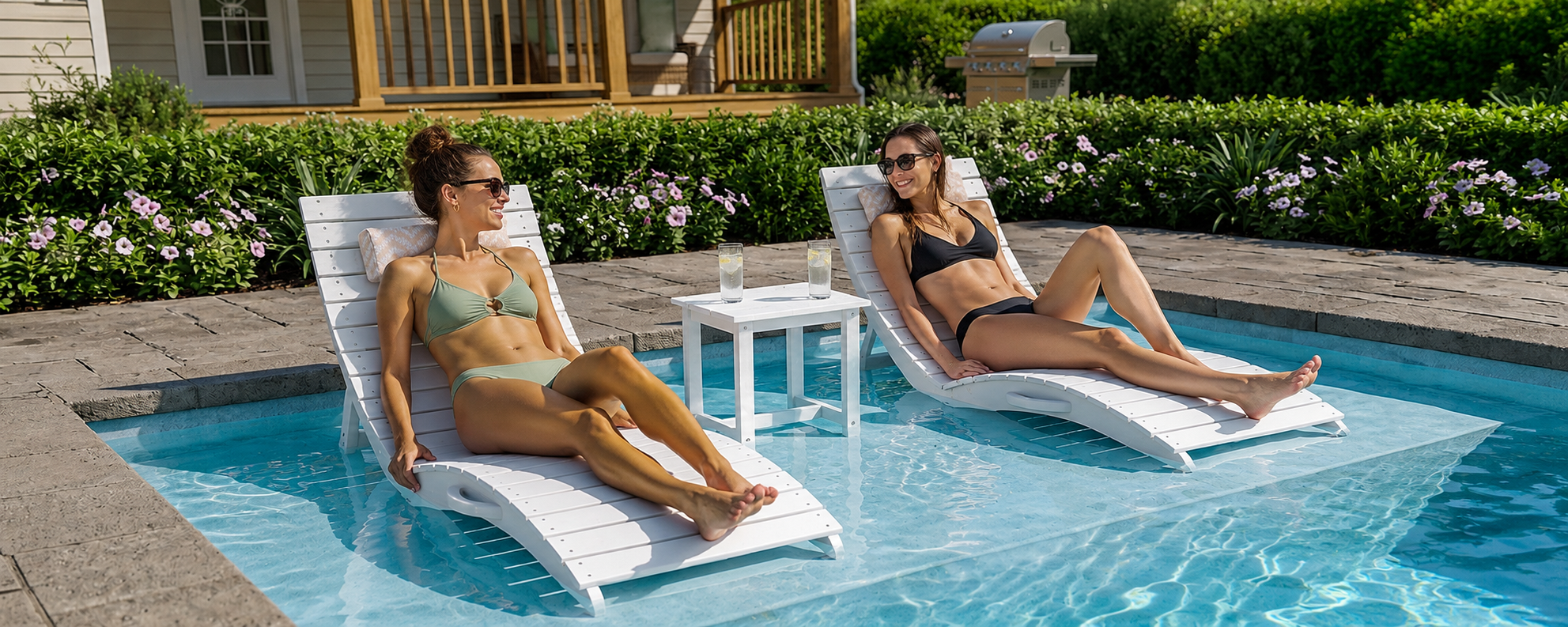

1. Measure the Actual Water Depth Above the Shelf

Water depth is one of the first measurements to take because it affects which chairs are suitable for your pool.

Do not measure the thickness or structural depth of the shelf. Measure the vertical distance between the finished shelf surface and the current waterline.

How to Measure the Water Depth

Place a rigid ruler or tape measure vertically at the exact location where the chair will sit. Measure at three points:

  • Where the back of the chair will rest
  • Near the center of the seat
  • Where the front of the chair will rest

Record all three measurements. If the results differ, use the deepest reading when checking product compatibility.

This approach is more dependable than relying exclusively on construction plans. Changes in the pool’s operating level, finish thickness, or shelf slope can make the actual water depth different from the planned measurement.

Match the Measurement to the Chair

AquaCurve recommends using its in-pool lounge chairs for sun shelves in water up to 9 inches deep whenever possible.

Measured water depth AquaCurve guidance
9 inches or less Recommended for all AquaCurve lounger models
10–12 inches Sasha, Serena, Ariel, or Michelle with additional sandbags
More than 12 inches Not recommended
Sally folding chair Keep within 9 inches

If your shelf holds 10–12 inches of water, contact AquaCurve customer service for additional sandbags before using a compatible model. The Sally folding chair should remain in water no deeper than 9 inches.

For a complete model-by-model explanation, see what water depth is best for in-pool lounge chairs.

2. Measure the Usable Depth of the Sun Shelf

The total depth of a sun shelf and its usable depth are not always the same.

A pool plan might show a shelf that is six feet deep, but some of that area may include a curved edge, steps, a spillover, or the transition into the main pool. Those sections may not provide a complete, level footprint for an in-pool lounge chair.

Measure from the back of the usable furniture area to the point where the shelf begins to curve, slope, or drop into deeper water.

A simple way to calculate it is:

Usable shelf depth = total shelf depth − obstructed or unsuitable edge space

Do not automatically include:

  • Rounded or curved corners
  • The drop-off into the main pool
  • Steps leading onto the shelf
  • Areas affected by fountains or bubblers
  • Sections where the chair cannot make full contact with the surface
  • Space needed for people to enter the pool

Compare the Usable Depth With the Full Chair Footprint

When determining what size pool lounger fits a tanning ledge, consider more than the chair’s overall length.

Check:

  • The chair’s complete front-to-back dimensions
  • The portion of the chair that contacts the shelf
  • The location of the front and rear support points
  • The space required to approach or exit the chair
  • Whether any part of the chair would extend over the drop-off

A chair may technically fit within the total shelf dimensions and still feel crowded in everyday use. The goal is not merely to place the chair on the shelf. You should also leave enough room to use it comfortably.

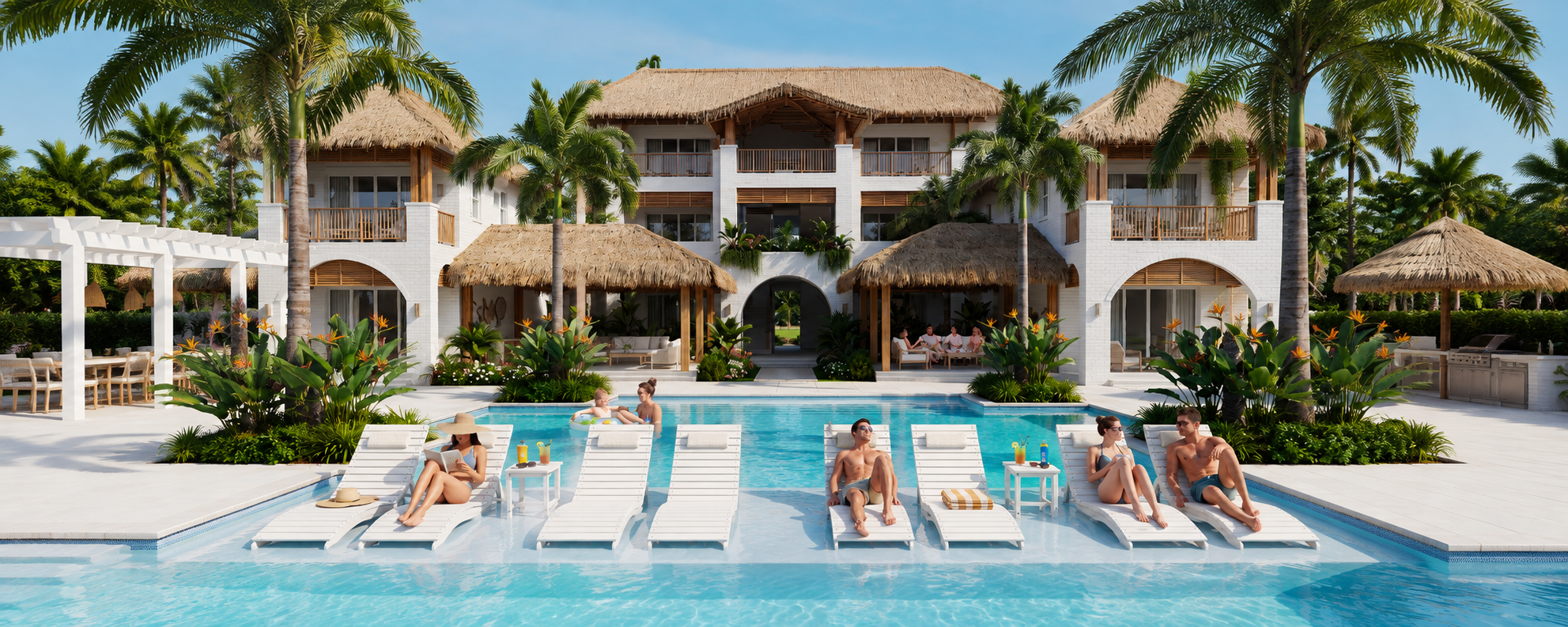

3. Measure the Minimum Usable Width

Measure the shelf from side to side at the location where the chair will sit.

If the shelf is rectangular, this measurement may be straightforward. If it is curved, tapered, or irregular, measure the width at several points:

  • Near the back of the chair
  • At the center of the seat
  • Near the front of the chair
  • At the narrowest point within the proposed furniture area

Use the smallest measurement as your usable width. Measuring only the widest section can make an irregular shelf appear more spacious than it really is.

Account for Every Chair and Table

If you plan to add two chairs or a side table, calculate the combined furniture width rather than evaluating each piece separately.

Required width = combined chair widths + space between furniture + side clearance

Leave enough room to:

  • Sit down and stand up without touching the next chair
  • Reach a side table comfortably
  • Approach the chair from at least one side
  • Clean around and underneath the furniture
  • Move a chair without striking another piece
  • Keep the main access path open

There is no single spacing number that works for every pool. The appropriate clearance depends on how people enter the chairs, the shape of the shelf, and whether steps or handrails are nearby.

If you are planning a complete arrangement, use this guide on how to fit two in-pool loungers and a table on a sun shelf.

4. Check Whether the Shelf Is Flat or Sloped

In-pool lounge chairs should be placed on a flat, shallow-water platform. A shelf that looks flat from the deck may still have a gradual slope for drainage or circulation.

You can check for a slope using the water-depth measurements you already recorded.

Measure the water at:

  1. The proposed back of the chair
  2. The middle of the chair
  3. The proposed front of the chair

If the water is noticeably deeper at one end, the platform may be sloped.

A slope can affect:

  • How completely the chair contacts the shelf
  • The final sitting angle
  • How grounded the chair feels when empty
  • Whether the front of the chair is more likely to lift
  • How easy it is to sit down and stand up

Do not assume that additional weight will correct an unsuitable surface. Sandbags can help compatible models remain stable within their recommended water-depth range, but they do not turn a sloped pool entry into a flat furniture platform.

If the readings vary substantially or you are unsure whether the surface is suitable, send AquaCurve a photo and the three measurements before ordering.

5. Mark Steps, Jets, Drains, and Other Obstacles

A shelf’s advertised dimensions rarely tell the entire story.

A 6-by-12-foot shelf does not necessarily provide a complete 6-by-12-foot furniture area. Fixed features may reduce the usable space or determine where a chair can be placed.

Create a simple overhead sketch and mark the location of:

  • Pool steps
  • Handrails
  • Return jets
  • Drains
  • Pool lights
  • Umbrella sleeves
  • Bubblers
  • Spa spillovers
  • Fountains or other water features
  • Curved corners
  • The shelf drop-off

Record the distance between each obstacle and the nearest pool wall or shelf edge.

Avoid placing furniture where it blocks a step, covers a drain, interferes with a water feature, or sits unevenly over a change in the surface. You should also avoid positioning a chair where a strong jet or spillover constantly pushes water against it.

This obstacle map is especially important when determining whether an in-pool lounger will fit your existing sun shelf. The clear furniture zone may be considerably smaller than the overall platform.

6. Plan the Space Between Chairs and Tables

Checking whether one chair fits is only the beginning. Your complete layout must work when people are actually using the pool.

Before ordering multiple pieces, compare the dimensions of every chair and table with your usable shelf measurements.

Allow Room for Real Use

Consider what happens when someone:

  • Walks toward the chair
  • Sits down from the side
  • Stands up and returns to the pool
  • Reaches for a drink
  • Moves between two chairs
  • Cleans the shelf
  • Repositions or removes the furniture

If the chairs fit only when placed edge to edge, the layout will probably feel more crowded in person than it appears on paper.

An in-pool side table for a sun shelf also needs its own footprint. Do not treat the table as if it can occupy leftover space between two chairs without affecting access.

Test the Layout Before Ordering

You can create a simple full-size mockup before making a purchase:

  1. Check the published dimensions for each chair and table.
  2. Reproduce those dimensions with painter’s tape on the pool deck.
  3. Use towels, cardboard, or another removable material to represent each footprint.
  4. Mark the location of the shelf edge and all fixed obstacles.
  5. Walk through the proposed entry route.
  6. Check whether you can approach each chair comfortably.
  7. Adjust the quantity or arrangement if the layout feels cramped.

Do not apply tape to a pool finish unless the tape is appropriate for that surface. You can perform the same test on the deck and compare the resulting layout with your measurement sketch.

A full-size mockup often reveals problems that are difficult to see when working only with numbers.

7. Preserve a Clear Entry and Exit Path

Furniture should not take over the route people normally use to enter the pool.

Identify the path between:

  • The pool deck and the shelf
  • The steps and the main swimming area
  • A handrail and the open water
  • The lounge chair and the shelf exit

Think about who uses the pool and how they move through it. Children, older adults, and guests unfamiliar with the layout may need more obvious access than regular users.

Also consider the direction from which someone will enter the chair. A layout may leave an open route through the shelf while providing no practical way to approach the seat itself.

There is an important difference between “the furniture fits” and “the layout works.” Preserve a comfortable entry route even if doing so means using one chair instead of two.

Record Your Measurements on a Simple Sun Shelf Plan

Write the measurements down rather than relying on memory. Use this in-pool lounger measurement checklist to record your results:

Measurement Your result
Water depth at the back ____ inches
Water depth at the center ____ inches
Water depth at the front ____ inches
Maximum usable shelf depth ____ inches
Minimum usable shelf width ____ inches
Number of chairs planned ____
Side table planned Yes / No
Steps or fixed obstacles ____
Available entry-path width ____ inches
Shelf surface Flat / Sloped / Unsure

Add a simple overhead drawing showing the shape of the shelf and the location of each obstacle. Take photos from above and from the pool deck when possible.

These records will make it easier to compare AquaCurve in-pool loungers or ask customer service for help.

How to Use Your Measurements to Choose an AquaCurve Lounger

Once you have the seven measurements, use them to narrow your choices.

If You Have a Compact Sun Shelf

Start by comparing shorter-footprint seating options. Ariel and Michelle are designed to work with more compact tanning-ledge layouts.

Michelle provides a more upright seating position with armrests and a cup holder. Ariel offers a compact lounger format for users who want to conserve front-to-back space.

Confirm the current product dimensions against your minimum usable width and depth before ordering.

If You Have a Larger Sun Shelf

A deeper, more open platform may accommodate a longer chaise-style chair such as Sasha or Serena. These models provide a more extended lounging position but require more usable front-to-back space.

Sally can also work when folding storage is a priority, provided the water remains no deeper than 9 inches.

If Your Water Is 10–12 Inches Deep

Choose only Sasha, Serena, Ariel, or Michelle, and contact AquaCurve for additional sandbags before use.

Do not select Sally for this depth. AquaCurve loungers are not recommended in water deeper than 12 inches.

If You Are Still Unsure About the Fit

Send customer service:

  • Your three water-depth measurements
  • The minimum usable shelf width
  • The maximum usable shelf depth
  • A photo of the platform
  • A basic overhead sketch
  • The number of chairs and tables you want

This information is much more useful than sending only the pool’s total dimensions.

Common Measuring Mistakes to Avoid

Measuring the Pool Instead of the Shelf

The overall pool length and width do not tell you whether furniture will fit on the shallow-water platform.

Using Construction Plans Instead of the Current Waterline

Plans can provide a useful starting point, but the chair will be used in the finished pool. Measure the actual water above the finished shelf.

Recording Only the Widest Point

Curved and tapered shelves should be evaluated using the narrowest part of the intended furniture zone.

Ignoring Rounded Edges

A rounded edge may reduce the chair’s usable footprint even if it is included in the shelf’s total dimensions.

Ignoring Rounded Edges

A rounded edge may reduce the chair’s usable footprint even if it is included in the shelf’s total dimensions.

Forgetting Steps and Umbrella Sleeves

These features can determine the entire layout. Add them to the plan before placing any furniture.

Fitting Chairs Edge to Edge

A mathematical fit is not always a practical fit. Leave room for people to approach the chairs and use the table.

Measuring Water Depth in Only One Place

Taking multiple readings helps identify slopes and deeper sections.

Assuming Every Chair Supports the Same Water Depth

Chair designs and stability systems differ. Confirm the approved depth for the exact model you are considering.

Final Pre-Order Checklist

Before placing your order, confirm that:

  • The actual water depth was measured at three points
  • The deepest measurement is within the model’s recommended range
  • The usable front-to-back shelf depth was recorded
  • The minimum usable width was recorded
  • Curves and shelf-edge transitions were excluded
  • The surface was checked for slope
  • Steps, jets, drains, lights, and sleeves were marked
  • Every chair and table footprint was compared with the available area
  • Space was left between furniture pieces
  • A clear pool entry and exit path was preserved
  • Photos and a basic shelf plan were saved
  • Product dimensions and water-depth limits were confirmed

Once these points are checked, you can choose an in-pool lounge chair for your sun shelf with much more confidence.

FAQ

How Do I Measure a Sun Shelf for an In-Pool Lounge Chair?

Measure the actual water depth, maximum usable front-to-back depth, and minimum usable width. Then subtract the areas occupied by steps, curved edges, jets, drains, umbrella sleeves, and the route used to enter the pool.

Should I Compare the Chair’s Overall Dimensions or Only Its Base?

Check both. The overall dimensions show how much space the chair occupies, while the support footprint shows where it must make contact with the shelf. You also need room around the chair for access and normal use.

How Much Space Should I Leave Around an In-Pool Lounger?

There is no universal clearance that works for every shelf. Leave enough space to approach the chair, sit down, stand up, use nearby furniture, and keep the pool entrance open. Testing the full layout with tape or cardboard can help you judge whether the spacing is practical.

What If My Tanning Ledge Is Curved?

Measure the shelf at several points and use the smallest dimensions within the proposed chair area. Do not count a curved edge as usable space unless the chair’s complete support footprint remains on a flat surface.

What If the Front and Back of the Shelf Have Different Water Depths?

Use the deepest reading when checking water-depth compatibility. Different readings may also indicate a sloped platform, so confirm that the chair can make proper contact with the shelf before ordering.

Can AquaCurve Loungers Be Used in 12 Inches of Water?

Sasha, Serena, Ariel, and Michelle can be used in water up to 12 inches deep when additional sandbags are added. Contact AquaCurve customer service to request the extra sandbags. Sally should be used only in water up to 9 inches deep.

What Should I Send AquaCurve If I Need Help Choosing a Chair?

Send the water depth at the front, center, and back of the proposed chair location; the usable shelf width and depth; photos of the shelf; a simple obstacle map; and the number of chairs or tables you want to add.

Recommended AquaCurve Products

Recommended Pool Furniture Guides

View more
